★ FEATURE

特點

High stability of capacitance under severe ambient condition,such as high temperature and high humidity

在嚴苛的環境下（如高溫高濕）長期應用容量穩定性優異

Good self-healing properties,withstanding surge voltage stressing

自愈性能優異，能承受浪涌電壓沖擊

Excellent active and passive flame resistant abilities

優異的阻燃性能

★ APPLICATION

用途

For connection in series with the mains

電源串聯連接用

For capacitive divider power supply

阻容降壓應用

Such as power meter,LED driver,and other severe ambient condition applications

例如：電表，LED供電模塊及其他苛刻應用環境

引用標準

Reference Standard

IEC 60384-14 (3nd Edition,2005) UL1414,UL1283,GB/T 14472-1998,EN60384-14

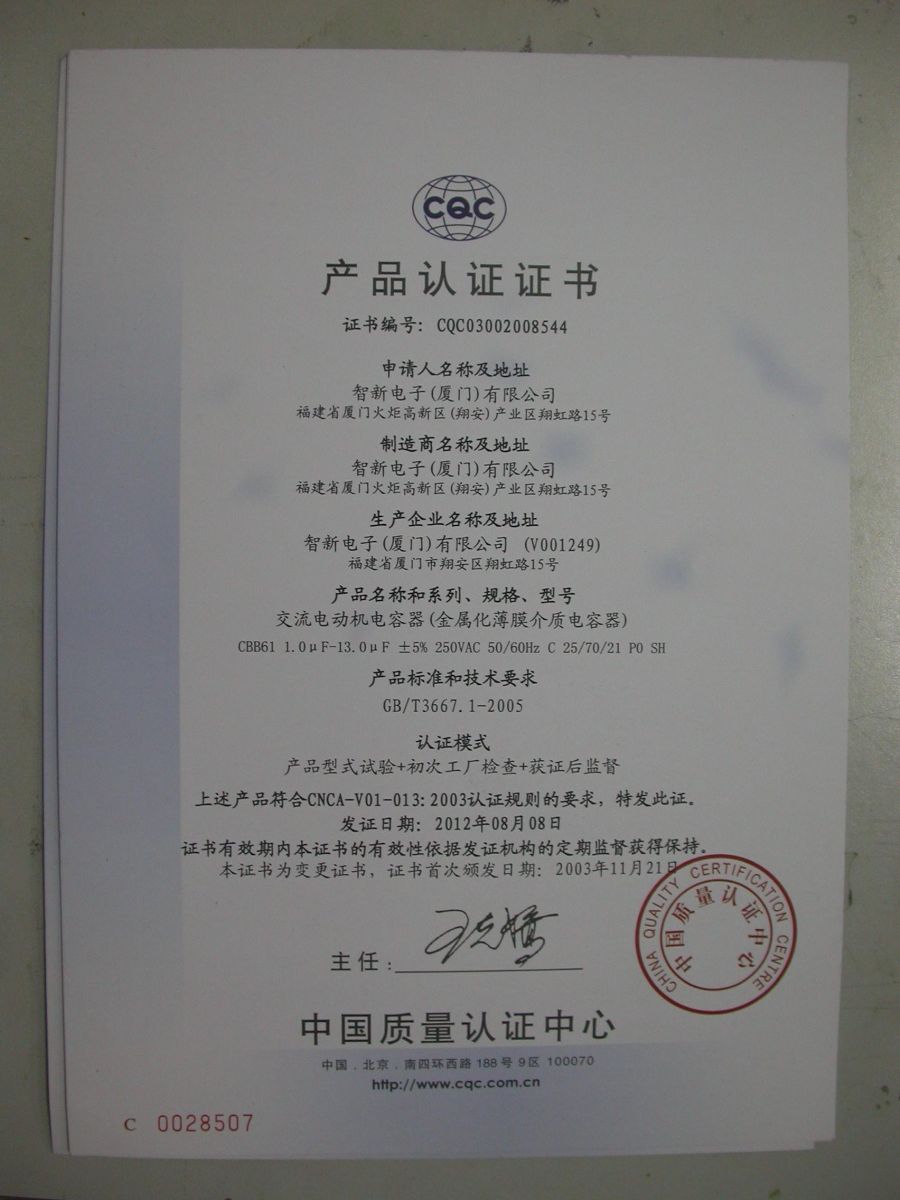

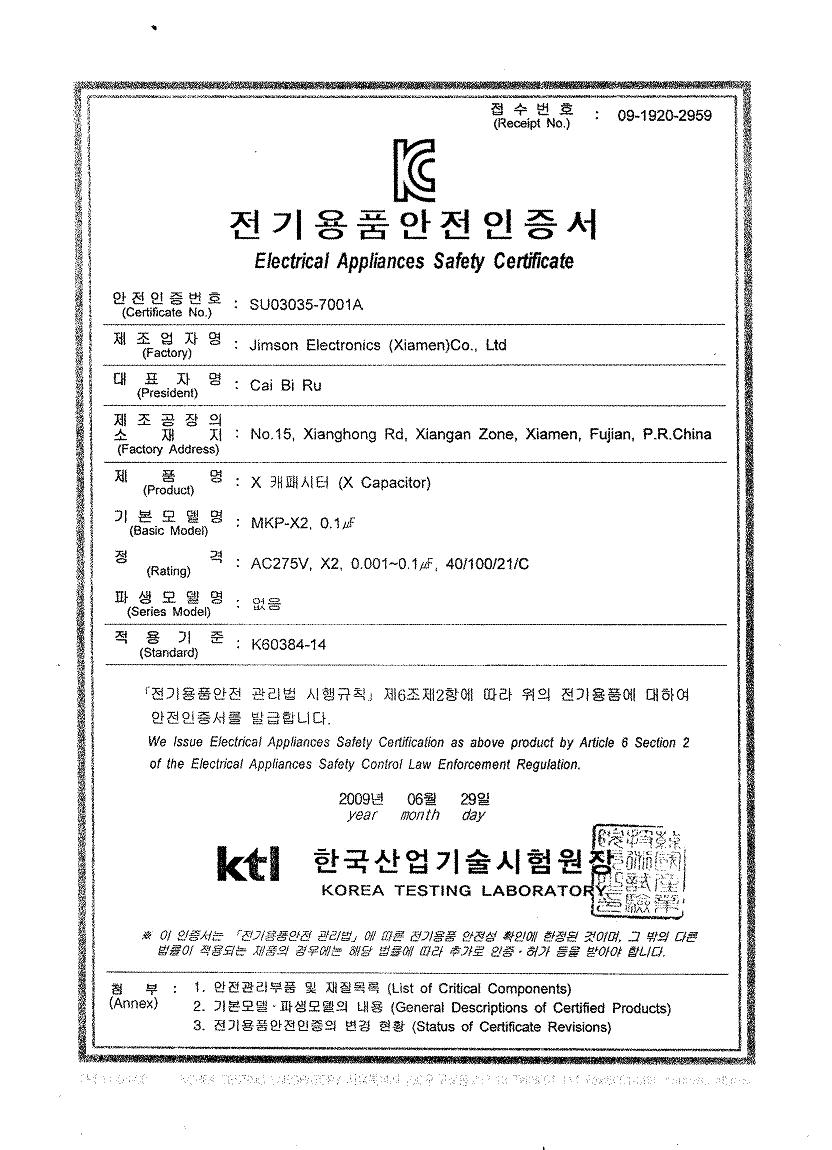

安全認證

Safety Approvals

CB:IEC60384-14;ENEC-VDE:40000463

CQC:03001002847

電容器類別

Class

X2 類

氣候類別/阻燃等級

Climatic Category/Passive Flammability Category

40/110/56/B

工作溫度范圍

Operating Temperature Range

-40℃~+110℃

額定電壓

Rated Voltage

305Vac，50/60Hz

電容量范圍

Capacitance Range

0.01uf~15uf

 電容量偏差

Capacitance Tolerance

M=±20%   K=±10% J=±5%

耐電壓

Voltage Proof

引線之間Between Terminals:1800Vdc(2s)

極殼之間Between Terminals To Case：2120Vac（1min）

絕緣電阻

Insulation Resistance

R≥15000MΩ，CN≤0.33uf

RCN≥5000s，CN＞0.33uf  （20℃，100V,1min）

損耗角正切

Dissipation Factor

≤10x10-4(1kHz,20℃） 典型值 Typical value 3x10-4

≤20x10-4(10kHz，20℃）典型值 Typical

Value 8x10-4

耐濕負荷測試

THB test （Damp heat test with loading)

Temperature:85℃±2℃；Humidity：85％±2％

Voltage：240Vac 50Hz；Duration：1000hours

Capacitance change：（△C/C):≤10％

Dissipation factor change（△tg？）：≤0.5％（1kHz）

Insulation resistant：≥50％ of initial value
